Elevator Access Control System
The elevator access control system consists of a reader inside the elevator car and a controller located in the elevator machine room.
The robot riding in the elevator is an optional function and requires additional equipment such as an outbound call control panel, elevator control floor panel, and button transfer board.
Access control systems typically use electronic authentication methods, including IC cards, QR codes, facial recognition, and more, to authorize individuals to use the elevator or determine the accessible floors. For example, authorized employees, residents, or approved visitors can access designated floors, while unauthorized individuals are restricted from entering certain areas. This enhances the security of the building.
Depending on the requirements, the access control software can be programmed to allow certain individuals access to specific floors on specific dates and times. Administrators can have unrestricted access to any floor at any time.
System Components
Visitor Controller
Visitor Relay
Designed specifically for elevator access control, it includes the necessary relays and intelligence to provide security and multi-functionality for
up to 64 floors.
This is a flexible system that connects to the network. You can purchase the appropriate controller kit based on the number of floors you need to control.
You can use IC cards, fingerprints, QR codes, or facial recognition to determine floor access permissions and
determine who and when can access specific floors.
Electronic Identity Verification Device
1）IC Card Reader

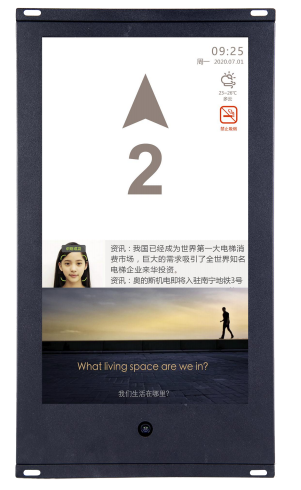

2）Facial Recognition Screen
Installed on the car COP, the identity authority audit is implemented through the repeater. After face recognition is successful, the authorized floor will be displayed on the screen or the button for the authorized floor will automatically light up.
◎ Display elevator floors, running directions, and play customized advertisements in real time.
◎ Multifunctional card readers such as QR code and Bluetooth enable multiple identifications.
◎ Upload face photos through the management platform.
◎ Record the elevator ride record using face recognition through the repeater.
◎ Supports offline use, can store 400MB of photos internally, and can store 20,000 face photos.
◎ Achieve access control linkage with the visitor system (repeaters, visitors outside the hall), and integrate with intelligent systems such as access control and video intercom.
◎ Can record tens of thousands of Facebook faces. Support memory expansion to increase the number of Facebook pages.
3）QR Code Card Reader
System Wiring Diagram:
The door access card reader in the elevator determines the floors that individuals can access. When the correct electronic identity credentials are detected and the floor button inside the elevator is pressed, the signal passes through a relay and reaches the elevator visitor control system, ultimately entering the elevator controller.
System Application Scenario
Facial Recognition for Elevator
Access The application scenario involves using facial recognition technology for elevator access control. It enables passengers to access specific floors or use elevators by verifying their identities through facial recognition. This application provides enhanced security and convenience, allowing for a seamless and efficient elevator experience.
Accessing Elevators with IC Card
Passengers can swipe their IC cards to gain access to the elevators, providing a convenient and efficient way to use the elevator system.
Passengers gain elevator access control and floor access by scanning QR codes.

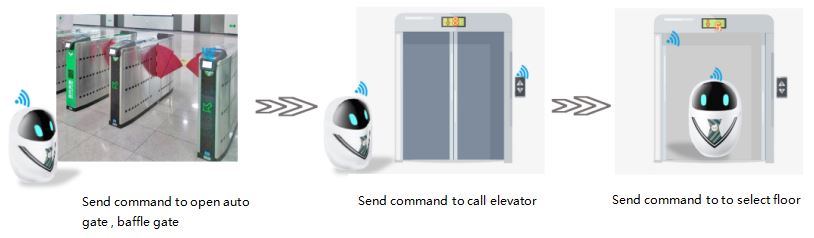

Robot rides in elevator
The robot sends instructions through WIFI, 4G, Lora and other communication methods to open doors, pass gates, call for elevators, take elevators, etc.

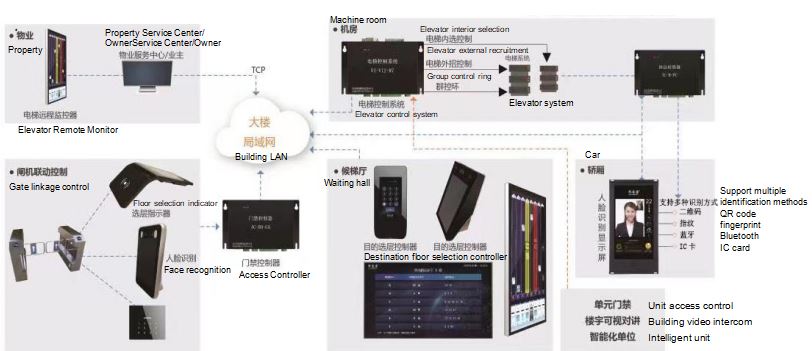

System Architecture Diagram
Contact us :master@keyuanlong.com.cn to learn more about how elevator access control systems.
